?保護接地終端。
訂購信息 |
|
Item |
Art. No. |
FREJA 403 Standalone Excl. FREJA Win, excl. soft case, excl. test leads |
CF-39000 |
FREJA 403 (with soft case) Incl. FREJA Win, soft case, test leads (GA-00033) |
CF-39090 |
FREJA 403 (with flightcase) Incl. FREJA Win, flightcase, test leads (GA-00033) |
CF-39091 |
FREJA 406 Standalone Excl. FREJA Win, excl. soft case, excl. test leads |
CF-49000 |
FREJA 406 (with soft case) Incl. FREJA Win, soft case, test leads (GA-00033) |
CF-49090 |
FREJA 406 (with flightcase) Incl. FREJA Win, flightcase, test leads (GA-00033) |
CF-49091 |
FREJA 409 Standalone Excl. FREJA Win, excl. soft case, excl. test leads |
CF-59000 |
FREJA 409 (with soft case) Incl. FREJA Win, soft case, 2x test leads (GA-00033) |
CF-59090 |
FREJA 409 (with flightcase) Incl. FREJA Win, flightcase, 2x test leads (GA-00033) |
CF-59091 |
Optional FREJA Win Software |
CF-8203X |
FREJA Win upgrade |
CF-8282X |
MGC IEC 61850 Megger GOOSE configuration software |
CF-8401X |
Optional accessories Multicable |
GA-00105 |
Flight case |
GD-00265 |
Soft case |
GD-00315 |
Test lead set With touch-proof contacts. 4 x 0.25 m (0.8 ft) / 2.5 mm2 2 x 0.5 m (1.6 ft) / 2.5 mm2 10 x 2 m (6.5 ft) / 2.5 mm2 Weight: 1 kg (2.2 lbs). |
GA-00033 |
GPS200 – MGTR The GPS receiver GPS200 – MGTR makes it possible to synchronize two or more FREJA to conduct endto-end testing. End-to-end testing provides quick, reliable results showing how two or more protection relay systems interact. The unit comes with a 15 m (50 ft) cable and an allweather antenna. Longer cables can be ordered. |
CF-90150 |
Cable organizer Velcro straps, 10 pcs. |
AA-00100 |
|
|
|
|

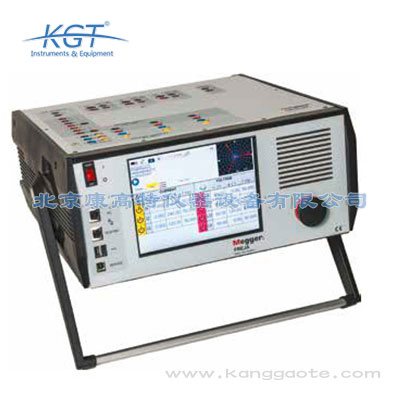

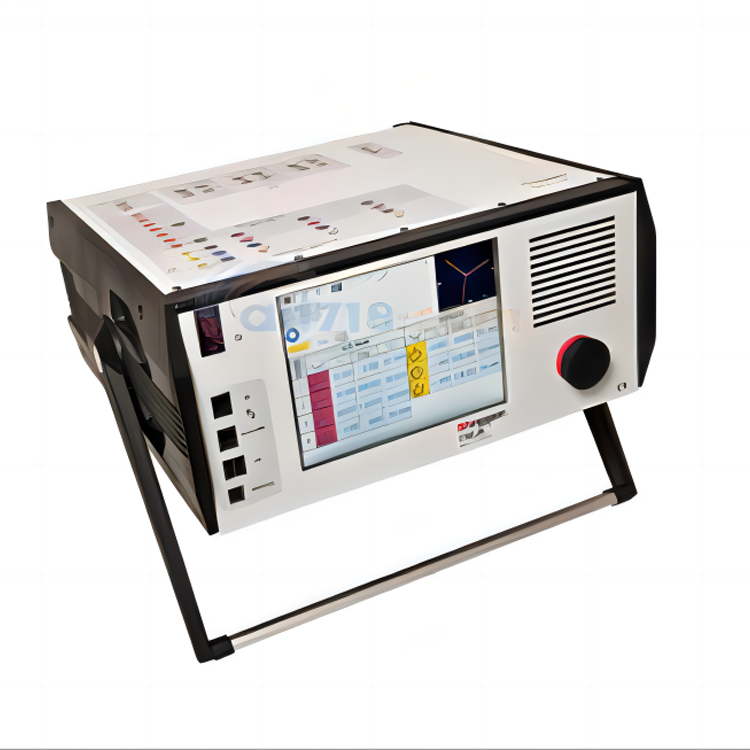

FREJA409繼電保護測試儀規格 |
|
電阻性負載、額定電壓以及+25°C ± 3°C的環境下30分鐘熱機后 規格有效。所有硬件數據都與實物相同。規格會在不經意間產生變 化。 | |
|
|
應用場合 | 儀器可在高壓變電站和工業環境下使用 |
運行溫度 | 0°C to +40°C (32°F to +104°F) |
儲存和運輸溫度 | -25°C到+70°C (-13°F到+158°F) |
濕度 | 5% – 90% RH, 不凝結 |
海拔(操作) |
3000 m 2000米以?xún)?nèi)可滿負荷操作。 在海拔大于2000米后,由于內部高溫保護,負荷會有限制。 |
CE標識 | |
EMC | EN 61326:2006 |
LVD | EN/IEC 61010-1:2001(第二版) |
常規 | |
電源電壓 | 100 – 240 V AC, 50–60 Hz |
功率 | 2400 VA |
儀器尺寸 |
400 x 175 x 420 mm (15.7” x 6.9” x 16.5“) |
運輸箱尺寸 |
514 x 499 x 280 mm (20” x 19.7” x 11”) |
儀器 (403, 406)重量 | 18 kg (39 lbs) |
儀器 (409)重量 | 21 kg (46 lbs) |
運輸箱重量 | 10 kg (22 lbs) |
顯示器 | LCD |
通信接口 | 以太網 |
